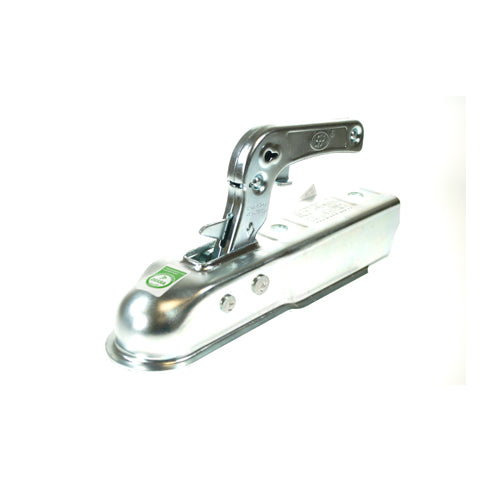

Pressed Steel 50mm Coupling

MP80 Pressed Steel 50mm Coupling for 50mm Square Tube Drawbars

• Requires 2 x M12 bolts (min 8.8)
• Application unbraked trailers, 750kg max
• The most widely used unbraked coupling on the market
• Suitable for use as a replacement for:
  • Knott KQ7K
  • AL-KO AK7D
  • Ifor Williams PO0355
  • Maypole unbraked trailers with 50mm drawbar
• Pressed steel construction, zinc plated finish

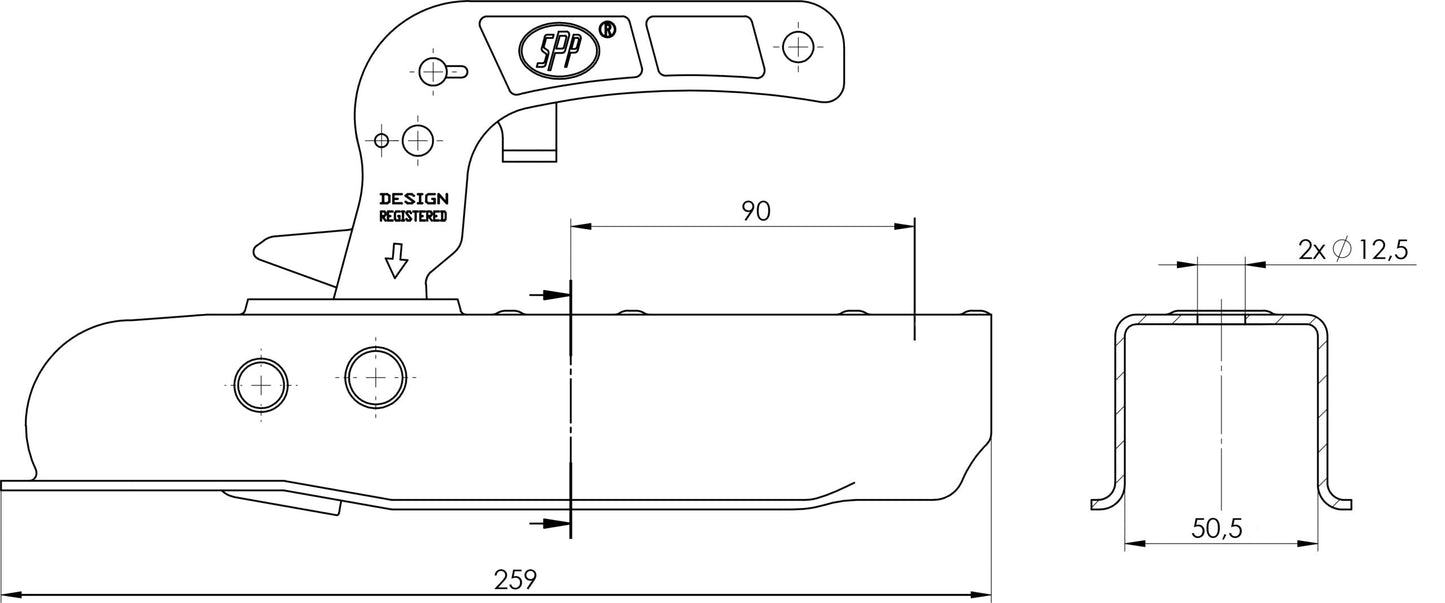

• 90mm mounting hole centres in top surface
• R55 approved (D7.2, S75)
• With wear and correct attachment indicator
• Supplied without lock. Suitable for use with optional lock MP478B
• Can be fitted with soft dock MP1940
