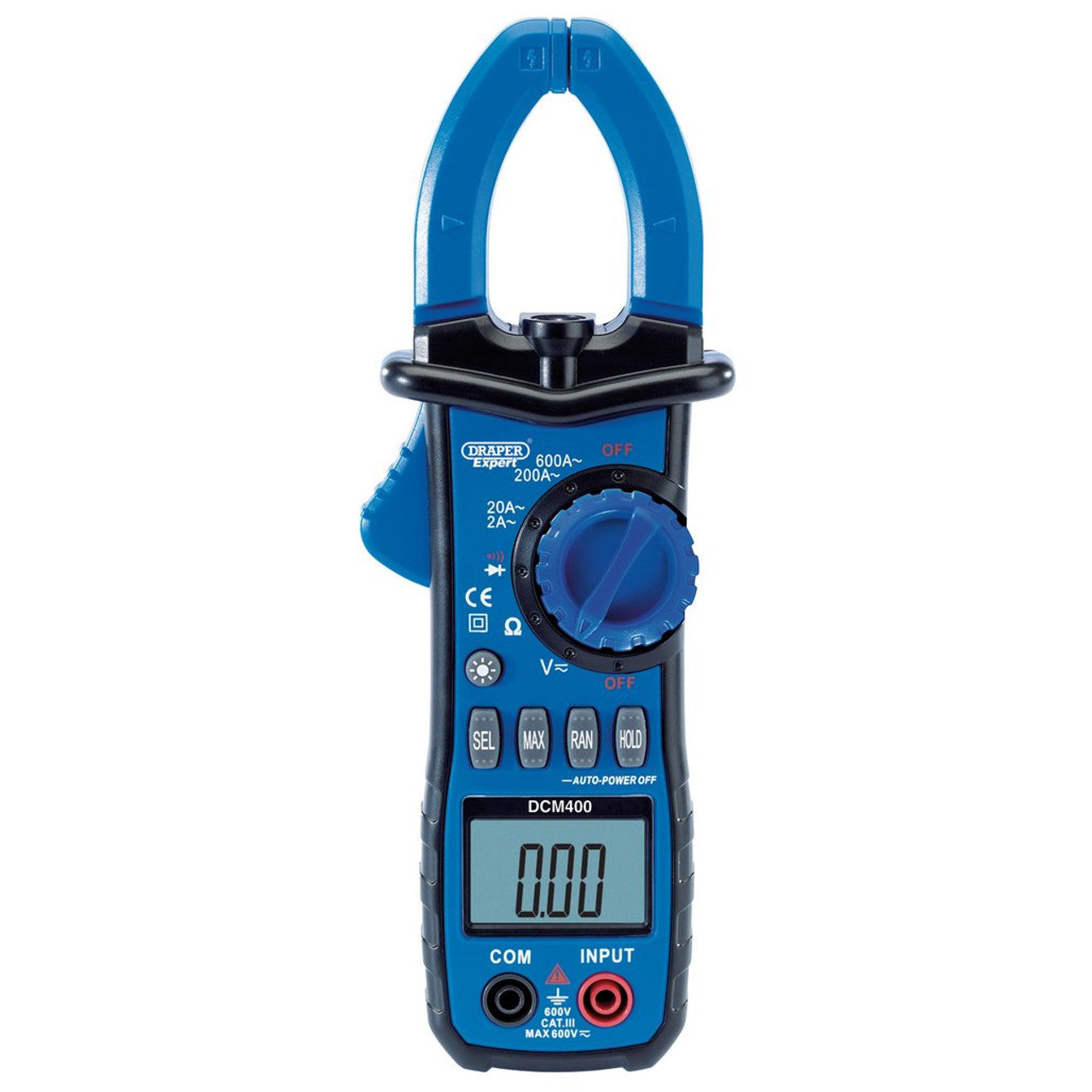

Manual-Ranging Digital Clamp Meter
Manual-Ranging Digital Clamp Meter
Auto and manual ranging clamp meter capable of voltage, current, resistance, diode and continuity testing. Maximum jaw - opening diameter of 36mm, backlit LCD screen, auto power off and a useful inspection light. Supplied with test leads and a case.
| AC Amps | 2A/20A/200A/600A |
| AC Current | 2A/20A/200A/600A |
| AC Voltage | 200mV/2V/20V/200V/600V |
| Automatic Power Off | Yes |
| Battery | 3 x AAA (not supplied) |
| Capacitance | N/A |
| DC Current | N/A |
| DC Voltage | 200mV/2V/20V/200V/600V |
| Diode on/off Test | Yes |
| Dimensions | 228mm x 156mm x 62mm |
| Duty Ratio | Yes |
| Dwell | N/A |
| Frequency | N/A |
| Resistance (Ohms) | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ |
| Symbol Unit Data Hold | Yes |
| TACH | N/A |
| Temperature Range | N/A |
| Weight | 480g (approx.) |
